Lag Bolt Door Assembly
Lag bolt construction is a signature
feature of our wood veneered doors. Bored
through the edges of the doors to secure
the stiles to the rails, these long metal
bolts are far stronger than wood
dowels and guard against joint
separation
caused by changes in temperature and
humidity in the door's surroundings.
|

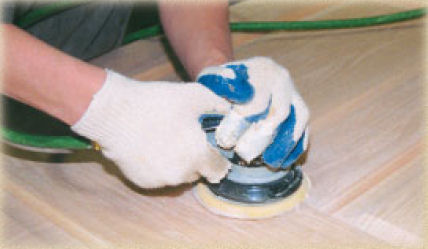

Hand Sanding
Every veneer door undergoes a
unique 3 stage sanding process,
the last stage of which involves
a thorough inspection and sanding
by hand to eliminate cross grain
scratches that automated sanding
machines make. By removing these
blemishes, we give you a clean
door that is virtually ready to
stain
and finish with minimal
follow-up sanding. In addition,
doors are examined under
ultra-violet light so that
glue residue can be spotted and
removed before shipment.
|
Profile options for 1-3/8" thick, wood veneer doors
|
Veneer Door Profile #2346 - Standard Sticking
with 3/4" Raised Panel, Wood Veneers and Solid Wood Edges
|
Veneer Door Profile #8866 - Standard Sticking
with 3/8" flat panel, Wood Veneers and Solid Wood Edges
|
Veneer Door Profile #8315 - Shaker Sticking with
3/8" flat panel, Wood Veneers and Solid Wood Edges
|
Veneer Door Profile #8943 - Mission Sticking with
3/8" flat panel, Wood Veneer and Solid Wood Edges
|
Veneer Door Profile #8728 - Plank with Shaker
Sticking with 5/8" v-grooved solid
wood panels, solid wood edges
|
Veneer Door Profile #2428 - Standard Sticking with
1/8" glass
Narrow Mullion
Wide Mullion
|
Cross sections for 1-3/4"-thick Wood Veneer Doors
|
Veneer Door Profile #2681 - Standard sticking with 1" raised
panel, wood veneers and solid wood edges
|
Veneer Door Profile #6388 - Shaker sticking and
3/8" flat panel, wood veneers and solid wood edges
|
Veneer Door Profile #8781 - Mission sticking and
3/8" flat panel, wood veneers and solid wood edges
|

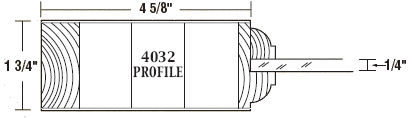

Veneer Door Profile #4032 - Standard sticking with 1/4" glass, wood veneers and solid wood edges |
|
Cross sections for 1-3/8" thick MDF-Faced doors
|
MDF Door Profile #2346 - Standard sticking with 3/4"-thick
raised MDF panel, MDF faces and hardwood edges
MDF Door Profile #8728 - Shaker sticking with
5/8"-thick flat MDF panel, MDF faces and hardwood edges
|
Cross sections for 1-3/4" thick MDF-Faced doors
|
MDF Door Profile #2681 - Standard sticking with 1"-thick raised MDF panel and
applied moldings, MDF Faces and hardwood edges
MDF Door Profile #8728 - Shaker sticking with
5/8"-thick flat MDF panel, MDF-Faces and hardwood edges
MDF Door Profile #2681 - Standard sticking with 1"-thick raised MDF panel, MDF-Faces and hardwood edges
|
Wood Veneer Interior Doors Catalog Numbers for 1-3/8" thickness
Line
drawings may not be to scale
Custom door designs available upon
request
All door designs are available with
raised or flat panels
For 1-3/4" doors change the SL to IM
|
|
|
|
|
|
|
|
|
